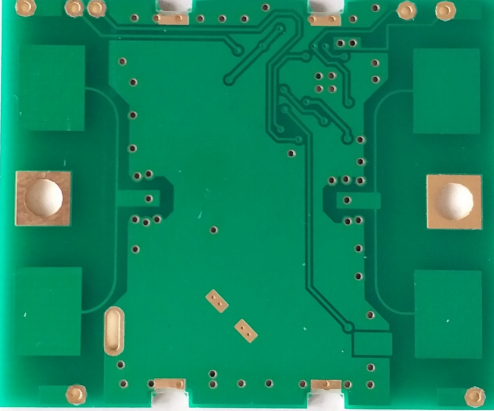

LWRD10GBM
Miniature transceiver radar module
Introduction
LWRD10GBM is miniature transceiver radar module using X-Band microwave frequency. Its unique frequency-stabilized radar Doppler circuit make it ideal for stable and precise motion detection applications over a wide temperature range. Its advanced antenna design offers a well-defined and precise detection beamig angles. It can operate in either CW or pulse mode with low duty cycle pulse mode to save power consumption. This module is ideally suitable for intruder or occupancy detection with minimum level of false alarm. It can also be used for auto-door opening in both indoor or outdoor environments and vehicle or object speed measurement.
Features
Low cost
CW or pulse operation
Low current consumption
3M detection range
Small size
Highly stable
High sensitivity
Precise detection coverage
Integrated IF amplification and detection circuitries
Minimum number of external components
IF, analog and digital outputs
Applications
Motion detector
Occupancy detector
Speed measurement
Lighting control
Auto-door opener
