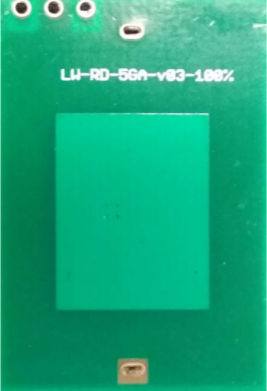

LWRD5G8M
Miniature transceiver radar module
Introduction
LWRD5G8M is a miniature transceiver radar module using ISM microwave frequency. Its unique radar Doppler circuit make it ideal for low-cost and precise motion detection applications over a wide temperature range. It operates in CW mode. This module is ideally suitable for intruder or occupancy detection with minimum level of false alarm. It can also be used for auto-door opening in both indoor or outdoor environments and vehicle or object speed measurement.
Features
Low cost
CW operation
Low current consumption
3M detection range
Small size
High sensitivity
Precise detection coverage
Integrated IF amplification and detection circuitries
Minimum number of external components
IF, analog and digital outputs
Applications
Motion detector
Occupancy detector
Speed measurement
Lighting control
Auto-door opener
