Introduction

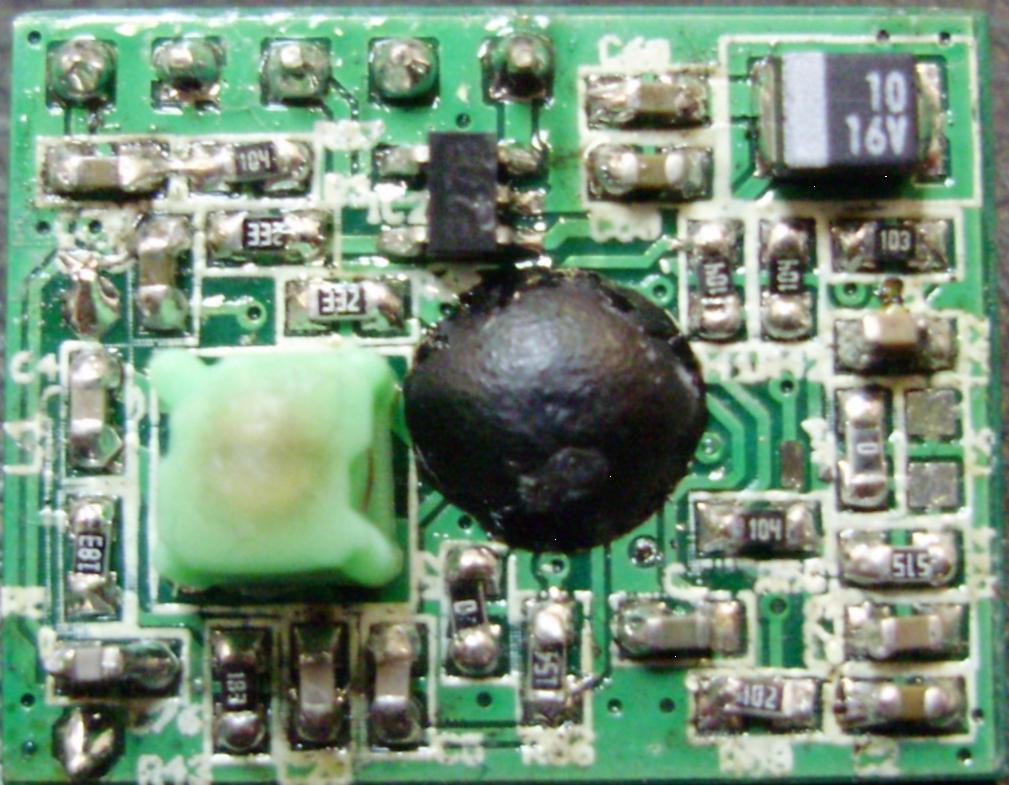

The LW103HM is an 850MHz to 930MHz receiver module employing super-regenerative amplitude-shift-keying (ASK) modulation (or On-Off keying, OOK). Customer can specify the receiving frequency. With our innovative design, the module can meet the FCC and ETSI EMI/EMC compliance requirements including the latest ETSI blocking requirement. Working together with LW203M, a transmitter module, LW103HM will achieve a communication range of 150 meter in open field. LW103HM is designed to operate for low power device (LPD) applications.

Features

• Frequency range from 850 MHz to 930 MHz

• High sensitivity

• Small size (24mm x 19mm)

• Low power consumption

• Operate from - 20 °C to 70 °C

• Low cost

• Low RF emission

• FCC and ETSI - compliant

Applications

• Remote controllers

• Security systems like car alarm

• Wireless door bells

• Garage openers

• Radio controlled toys

• Monitoring systems
