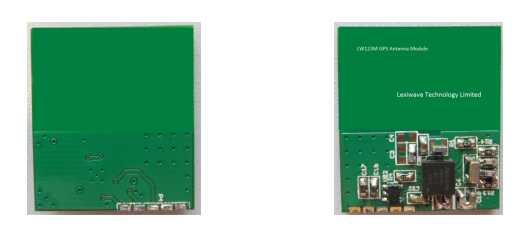

LW123M-P
GPS Antenna Module
Introduction
LW123M-P is a highly integrated GPS RF Antenna Module designed for GPS application with low power and low cost. The device consists of SiRFstarIV GPS chip and Lexiwave’s highly efficient antenna for best GPS reception sensitivity and antenna pattern.
Its integrated SAW 2.4GHz notch filter coupled with DSP based jammer removal gives superior interference rejection on, Cellular phone, Bluetooth and WiFi signals. It is particularly suitable for smart phone, tablet PC applications in which multiple RF signals may co-exist.
LW123M-P operates on a 3V positive power supply with 1.8V CMOS compatible UART 9600bps host processor interface. The module can enter a micro-power mode while maintaining Hot Start TTFF condition while consuming only 50µA.
Features
Complete system from antenna to navigation data output
Super-slim of 3.2mm thickness
Low operating voltage: 1.8 ~ 3.6V
High-sensitivity navigation engine (PVT) tracks as low as -163dBm
Micro-power mode of 50 to 500uA to maintain hot start capability
Excellent receiver selectivity and blocking performance
Applications
Tracking devices
GPS watches
GPS clocks
Smart phones
Tablet PCs
Navigation devices
Portable handheld devices
