LW313M
Mini 2.4GHz Transceiver Module
Introduction
The LW313-1/2M module is a miniaturised 2.4GHz transceiver module based on EM Microlectronic's low energy RF transceiver EM9201/02. The module is highly optimized for proprietary link application requiring ultra low power consumption and short time-to-market. It offers a plug and play solution for any EM9201 application without any additional hardware nor RF layout. Built in with an inverted-L PCB antenna, this small sized, low cost module provides an ideal solution to wireless 2.4GHz license-free applications worldwide. The EM9201/02 is a low-voltage 2.4GHz transceiver IC with built-in link-layer logic permitting proprietary wireless links in the 2.400 … 2.4835 GHz ISM band. It has a radio core with a low-IF architecture and GFSK modulation scheme being compliant with the emerging Bluetooth low energy technology standard.
Features
Fully integrated 2.4 GHz transceiver (Die form)
Operating voltage can reach down to 0.8V

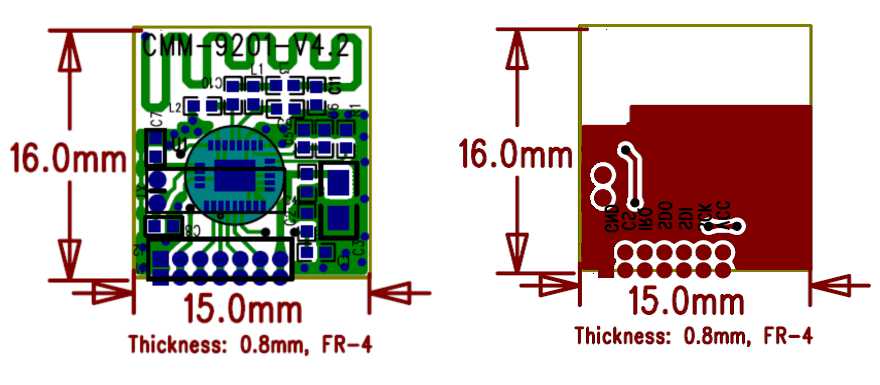

Mini-sized (16mm x 15mm)
Programmable RF output level (- 20 to + 4 dBm) by controlling software
On-chip Battery Level Detection (BLD)
Low current consumption (0.8uA at standby, 12.5mA in RX, 11.5mA in TX (0dBm))
1Mb/s (LW313-1M), 2Mb/s (LW313-2M) data rate
No tuning necessary
Reaches 20m at open space
GFSK modulation
SPI interface to host controller
