LW433DTXM
433.92MHz RF Transmitter Module
Introduction

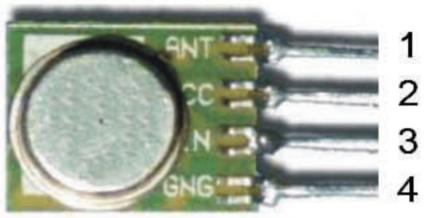

LW433DTXM is a compact RF module for 433.93 MHz ISM band for US and European markets. It is ideal for remote control applications where low cost and longer range is required. Using a SAW stabilized resonator, the transmitter ensures accurate frequency control for best range performance without any tuning. The transmitter operates from a 1.5V ~ 12V supply, making it ideal for battery-powered applications. Output power and harmonic emissions are easy to control, making FCC and ETSI compliance easy. The low cost SIP package makes LW433DTXM suitable for high volume applications.
Features
| Frequency Range | 433.92MHz |
|---|---|
| Frequency Accuracy | ±100 KHz |
| Modulation | ASK/ OOK |
| RF Output Power | 4 dBm @ 3V (2mW) 12 dBm @ 5V (29mW) |
| Power Supply | 1.5 ~ 12V |
| Power Supply for RF Transmit | 4.9 mA @ 3V, Data = 1 100 μA @ 3V, Data = 0 |
| Data Rate | 8Kbps |
| Low Wakeup Time | 1 μs |
| Input Pads | -0.3 ~ 12V Tolerant |
| Operating Temperature | -10°C ~ +70°C |
Applications
315/433MHz or 886/915MHz band systems
Remote controllers
Telemetry
Wireless mouse, keyboard, joystick
Security systems such as car alarm
Wireless door bells
Garage openers
Radio controlled toys
Monitoring systems
Local oscillator source
Remote fan/ light control
Toys
